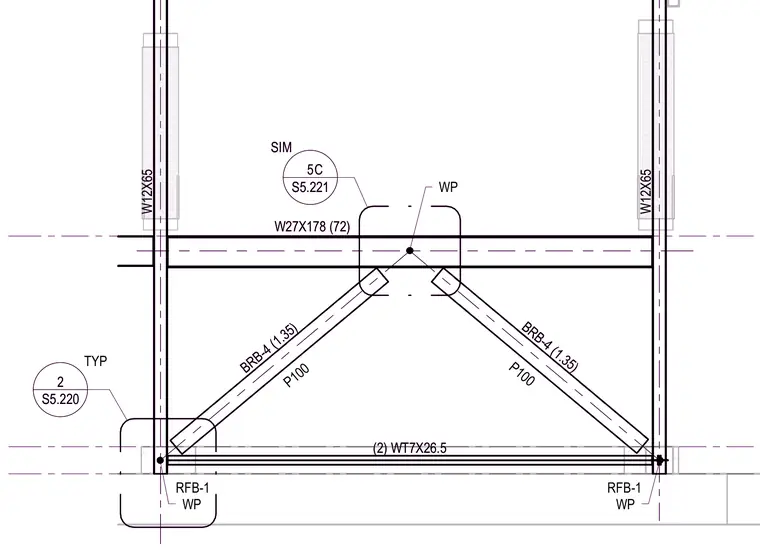

This structural steel connection assembly features a heavy W27x178 beam supported by vertical W12x65 columns. Diagonal BRB-4 buckling-restrained braces frame into the intersection with gusset plates and work points. Dual WT7x26.5 structural tees form the lower horizontal chord of the braced frame. Additional plate elements labeled P100 and RFB-1 reinforce the connection joints.
BRB-4 (1.35) BRB-4 (1.35) W12X65 W12X65 S5.221 5 S5.220 2 WP WP TYP WP W27X178 (72) P100 P100 (2) WT7X26.5 RFB-1 RFB-1 C SIM BRB-4 (1.35) BRB-4 (1.35) W12X65 W12X65 S5.221 5 S5.220 2 WP WP TYP WP W27X178 (72) P100 P100 (2) WT7X26.5 RFB-1 RFB-1 C SIM
