Horizontal rebar placement and corner reinforcement occur at a double concrete curtain wall intersection and external corner. The exterior corner features a three-quarter-inch chamfer at walls not in contact with soil. Horizontal reinforcing bars extend around the corner with specified splice lengths and standard hooks. The intersecting cross wall details include matching corner reinforcement and lap splices tailored to the wall thickness and design loads.

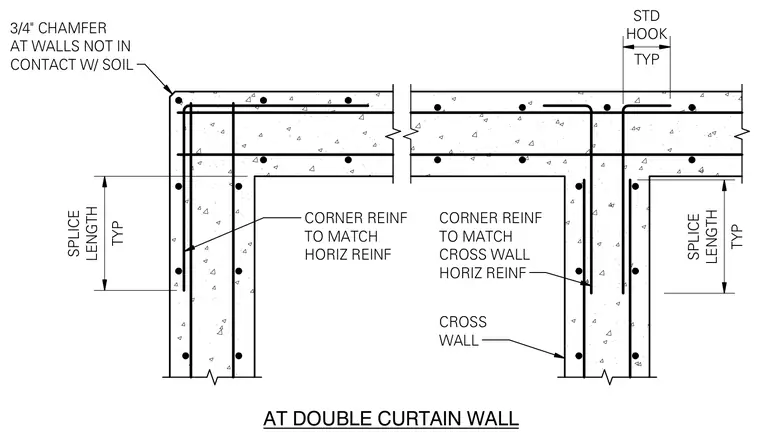

AT DOUBLE CURTAIN WALL TYP SPLICE LENGTH TYP STD HOOK TYP SPLICE LENGTH 3/4" CHAMFER AT WALLS NOT IN CONTACT W/ SOIL CORNER REINF TO MATCH HORIZ REINF CORNER REINF TO MATCH CROSS WALL HORIZ REINF CROSS WALL
