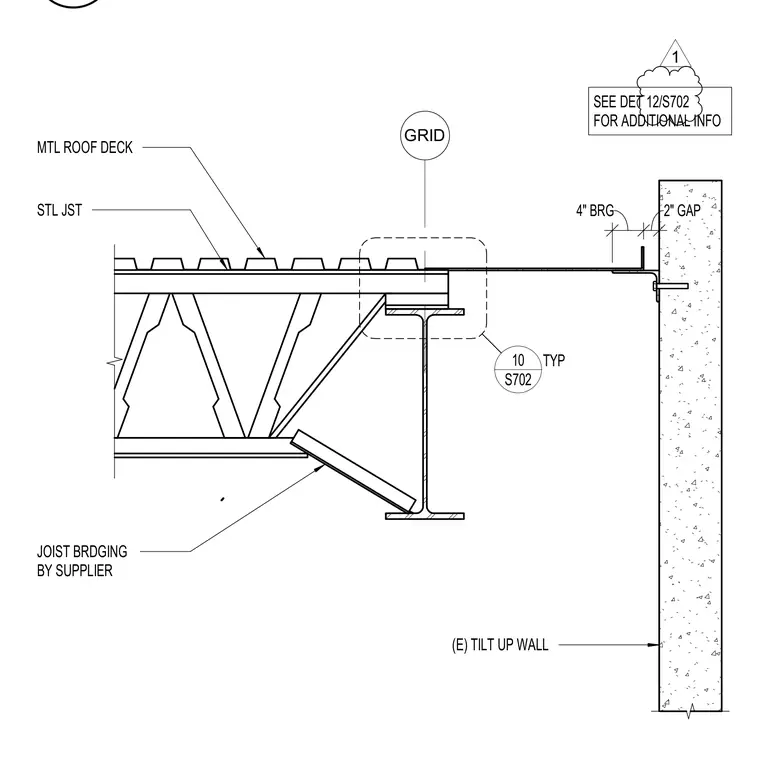

An open-web steel joist bears onto a structural steel beam and terminates near an existing tilt-up concrete wall with a two-inch gap and a four-inch bearing length. A metal roof deck spans across the top chords of the steel joists. Joist bridging is provided by the supplier and configured with diagonal members connected to the joist web. Additional information is referenced at detail 12 on sheet S702 near the grid line.
GRID SEE DET 12/S702 FOR ADDITIONAL INFO (E) TILT UP WALL JOIST BRDGING BY SUPPLIER 4" BRG 2" GAP S702 10 TYP MTL ROOF DECK STL JST 1
