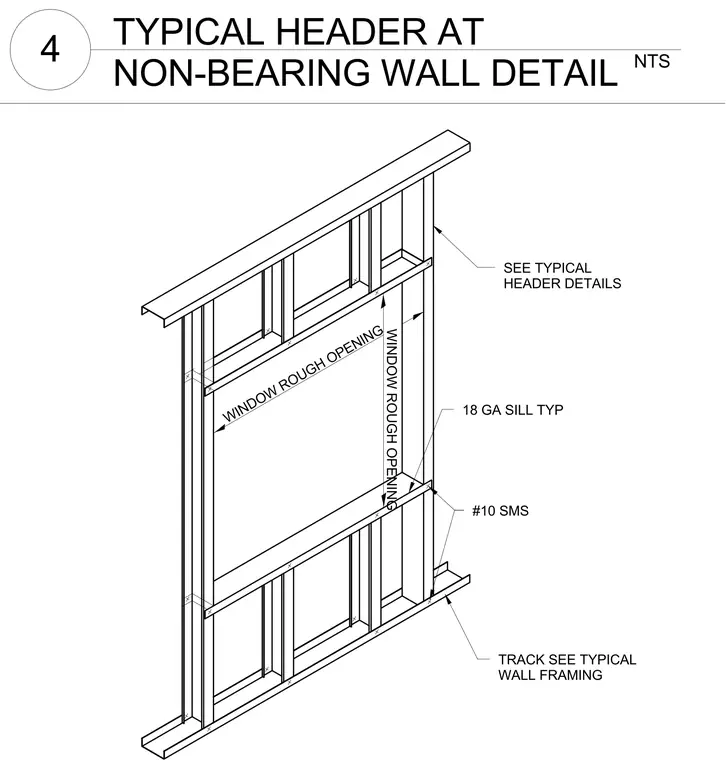

A light-gauge cold-formed steel non-bearing wall framing assembly configured for a window rough opening. The framing consists of top and bottom tracks supporting vertical studs, with header and sill framing members defining the window opening. An 18 gauge sill is fastened with number ten sheet metal screws, while header and wall framing details follow standard connection specifications.
WINDOW ROUGH OPENING WINDOW ROUGH OPENING TRACK SEE TYPICAL WALL FRAMING SEE TYPICAL HEADER DETAILS #10 SMS 18 GA SILL TYP NTS 4 TYPICAL HEADER AT NON-BEARING WALL DETAIL
