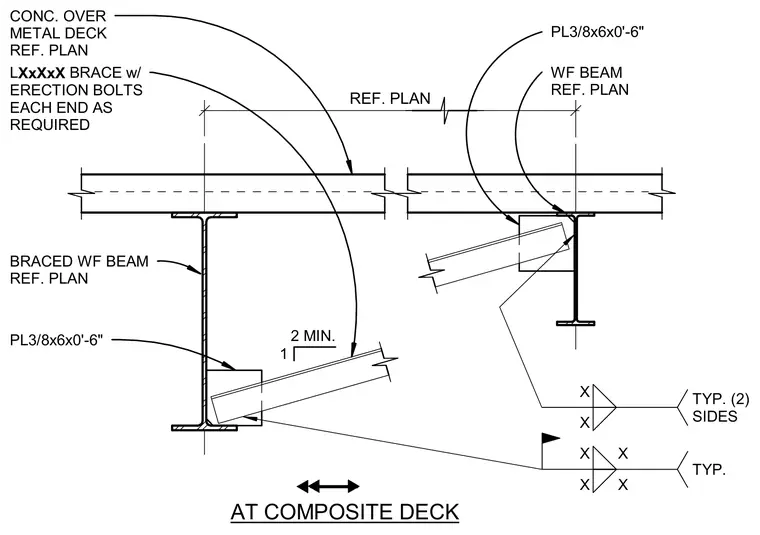

A structural steel angle brace connects to a wide-flange beam below a concrete-filled metal deck using three-eighths-inch by six-inch by zero-foot-six-inch gusset plates at each end. Erection bolts secure the angle brace with sizing per plan. Field welds join the connection plates on two sides as typical. A minimum clearance of two inches is maintained.
1 2 MIN. WF BEAM REF. PLAN BRACED WF BEAM REF. PLAN CONC. OVER METAL DECK REF. PLAN L XxXxX BRACE w/ ERECTION BOLTS EACH END AS REQUIRED PL3/8x6x0'-6" PL3/8x6x0'-6" REF. PLAN AT COMPOSITE DECK X X TYP. (2) SIDES X X X X TYP.
