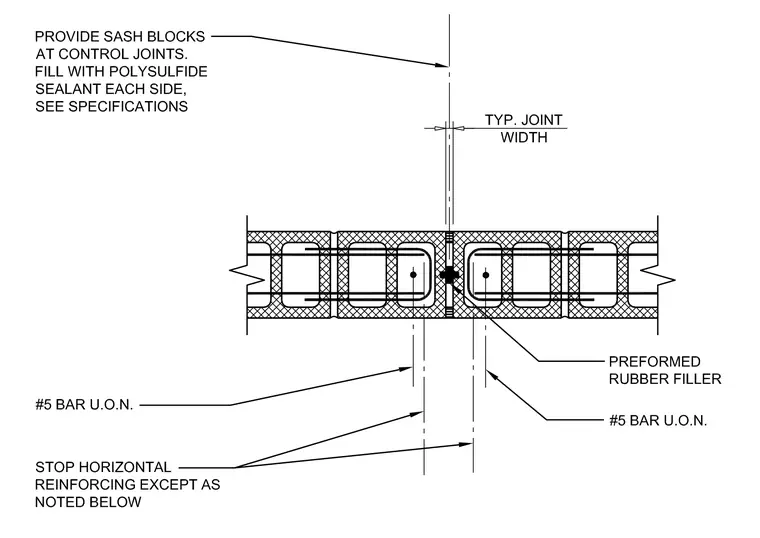

This concrete masonry control joint assembly features a preformed rubber filler centered within the joint width, sealed on each side with polysulfide sealant and supported by sash blocks. Number 5 reinforcing bars are provided continuously unless otherwise noted, with horizontal reinforcing stopped at the joint interface. The vertical joint maintains a typical width between adjacent masonry wall segments.
