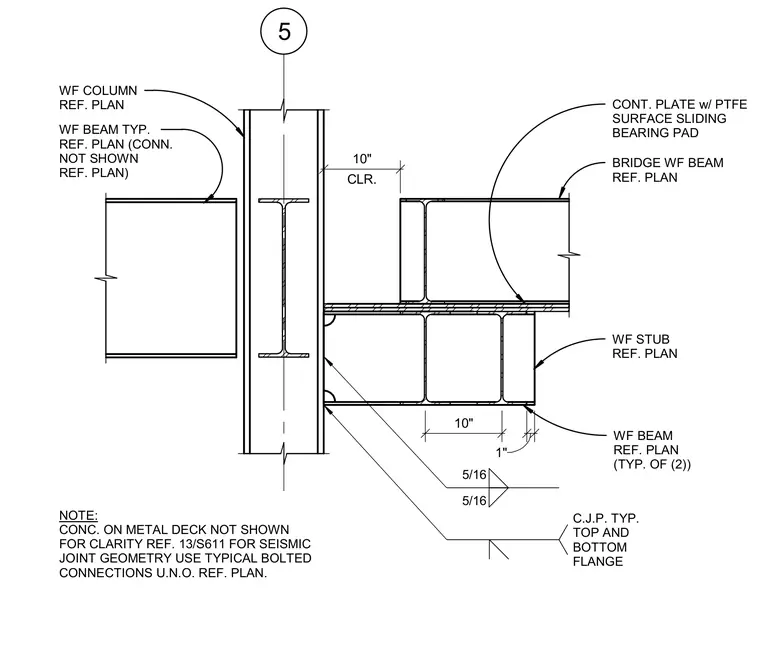

A structural detail of a seismic expansion joint connection frames into a wide flange column. A wide flange stub connects to the column face with complete joint penetration welds on the top and bottom flanges. A continuous plate with a PTFE surface sliding bearing pad supports a bridge wide flange beam with a ten-inch clearance gap from the column. Typical wide flange beams frame into the opposite side of the column. Concrete on metal deck is omitted for clarity.
BRIDGE WF BEAM REF. PLAN CONT. PLATE w/ PTFE SURFACE SLIDING BEARING PAD WF STUB REF. PLAN WF BEAM REF. PLAN (TYP. OF (2)) 5/16 5/16 C.J.P. TYP. TOP AND BOTTOM FLANGE WF COLUMN REF. PLAN WF BEAM TYP. REF. PLAN (CONN. NOT SHOWN REF. PLAN) NOTE: CONC. ON METAL DECK NOT SHOWN FOR CLARITY REF. 13/S611 FOR SEISMIC JOINT GEOMETRY USE TYPICAL BOLTED CONNECTIONS U.N.O. REF. PLAN. 10" 1" CLR. 10" 5
