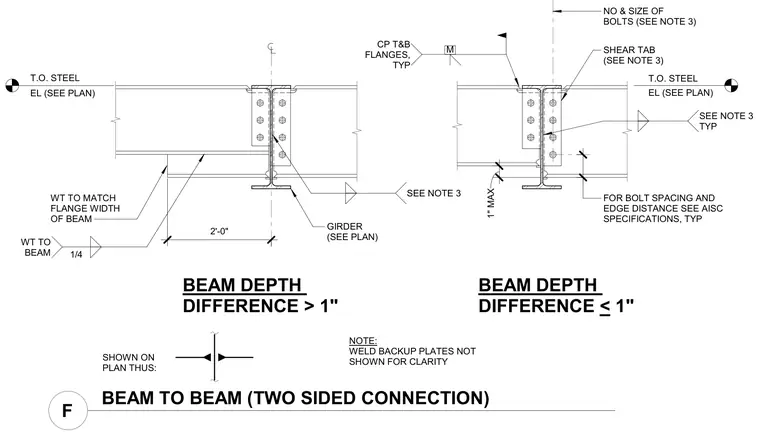

Two steel beams frame into opposite sides of a supporting steel girder web using bolted shear tabs. When the beam depth difference exceeds one inch, a WT shape matches the flange width of the intersecting beam with a quarter-inch weld to the beam. For depth differences of one inch or less, standard shear tabs and bolted connections attach the beams directly to the girder. Bolt size, spacing, and edge distance follow AISC specifications. Backup plates are omitted from weld symbols for clarity.
BEAM TO BEAM (TWO SIDED CONNECTION) F BEAM DEPTH DIFFERENCE > 1" BEAM DEPTH DIFFERENCE < 1" NOTE: WELD BACKUP PLATES NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) FOR BOLT SPACING AND EDGE DISTANCE SEE AISC SPECIFICATIONS, TYP SHEAR TAB (SEE NOTE 3) GIRDER (SEE PLAN) WT TO MATCH FLANGE WIDTH OF BEAM SHOWN ON PLAN THUS: 2'-0" 1/4 WT TO BEAM 1" MAX CP T&B FLANGES, TYP SEE NOTE 3 TYP M SEE NOTE 3 EL (SEE PLAN) T.O. STEEL EL (SEE PLAN) T.O. STEEL
