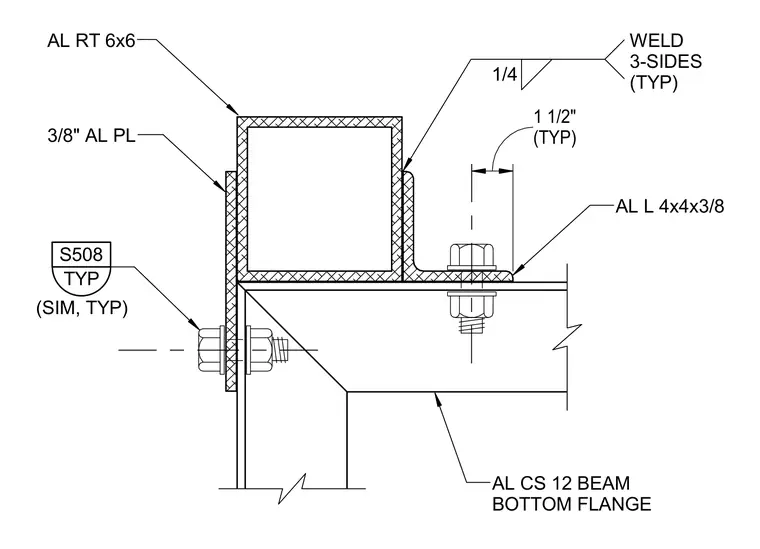

An aluminum channel section beam bottom flange connects to an aluminum rectangular tube and plate assembly. An aluminum angle 4x4x3/8 is typically welded to the rectangular tube with a quarter-inch fillet weld on three sides. A three-eighths-inch aluminum plate is secured to the side with S508 bolts typically. A one-and-a-half-inch typical dimension locates the bolt and angle position on the beam flange.
AL CS 12 BEAM BOTTOM FLANGE 1/4 AL RT 6x6 WELD 3-SIDES (TYP) (TYP) 1 1/2" 3/8" AL PL TYP S508 AL L 4x4x3/8 (SIM, TYP)
