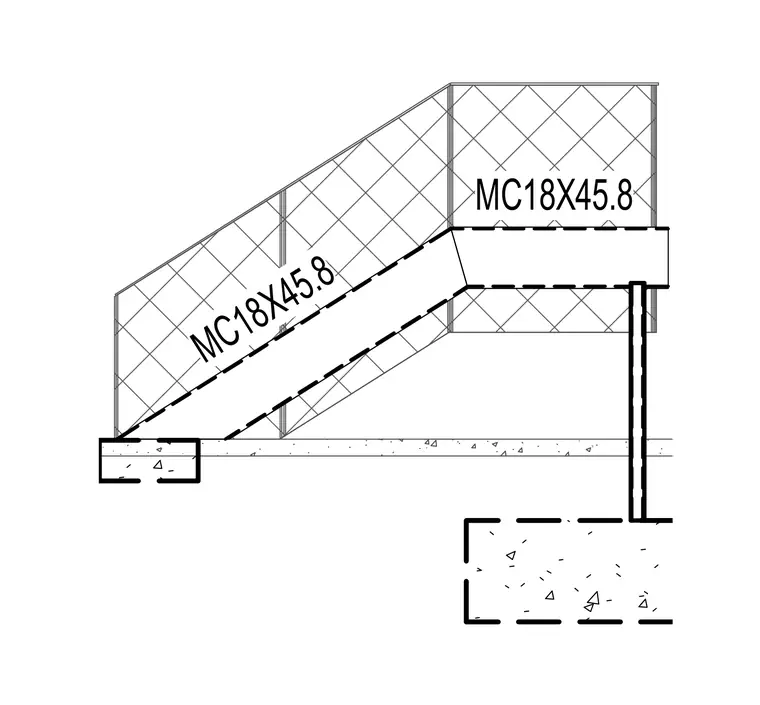

Steel stair framing utilizes MC18X45.8 channel stringers framing into intermediate support members and bearing plates. The assembly ties structural steel stringers to concrete landing and foundation elements. Vertical steel support posts anchor beneath the upper landing level.
