Architectural · S-E6JHE

Base Cabinet at Sink with Solid Surface Countertop

Materials

Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Doors Millwork / Casework Connections / Plates

About this detail

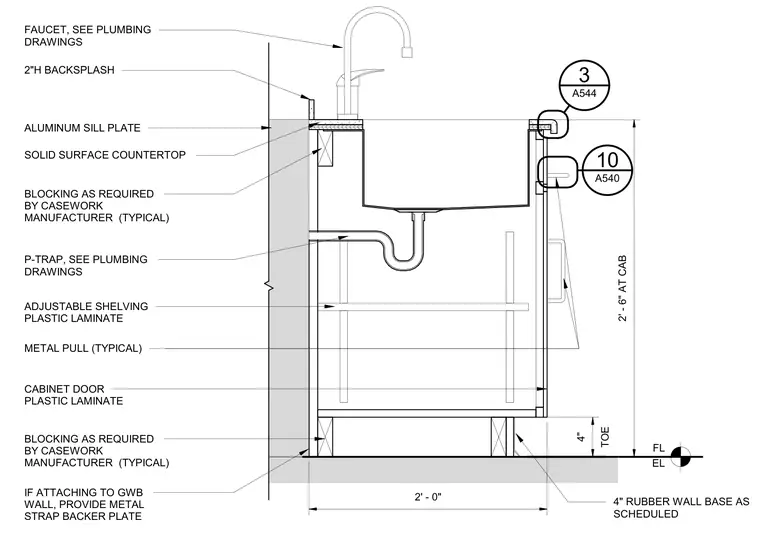

A base cabinet installation at a sink features a solid surface countertop with a two-inch backsplash and an aluminum sill plate. The assembly includes plastic laminate cabinet doors, adjustable plastic laminate shelving, and a metal pull on the cabinet face. Wood blocking is provided as required by the casework manufacturer at the wall and base. A four-inch rubber wall base finishes the floor junction, with a finished floor elevation set at the base. Faucet and P-trap connections are coordinated per plumbing drawings, and a metal strap backer plate is specified if attaching to a gypsum wallboard wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
