Structural · S-E6HVY

Typical SFRS Collector Connector at Steel Column

Materials

Concrete Steel Metal (misc.)

Elements

Beams Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

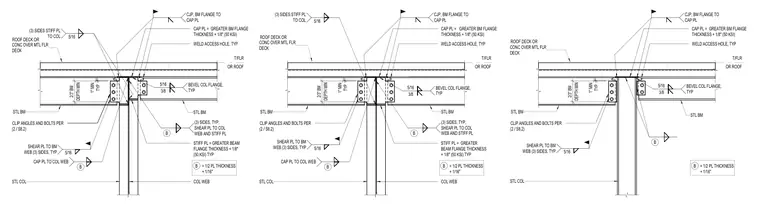

This structural steel connection detail shows a steel beam framing into a steel column with a column cap plate and stiffener plates sized to the greater of the beam flange thickness plus one-eighth inch at fifty KSI. The beam flange connects to the cap plate with a complete joint penetration weld, complemented by weld access holes. A shear plate connects to the beam web with five-sixteenth inch fillets on three sides, and to the column web and stiffener plate using similar five-sixteenth inch welds. The column flange features a three-eighth by five-sixteenth inch bevel typical detail, and clip angles with bolts are provided per the structural plans. Concrete over metal floor or roof deck bears above the assembly.
