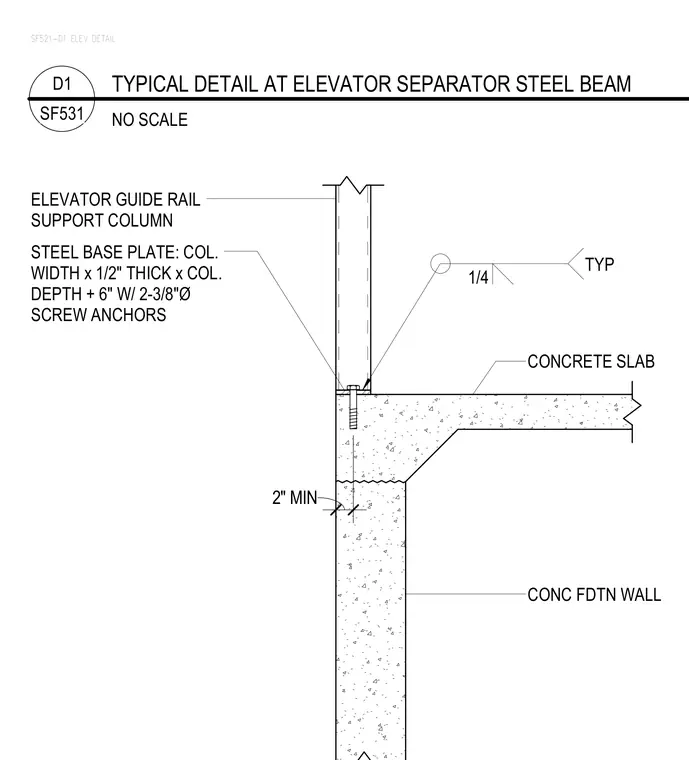

An elevator guide rail support column connects to a concrete slab and concrete foundation wall using a steel base plate sized to the column width and depth plus six inches with two three-eighths-inch diameter screw anchors. Fillet welds of one-quarter-inch size are typically applied at the base connection. A minimum two-inch dimension is maintained at the foundation wall intersection.
CONC FDTN WALL CONCRETE SLAB ELEVATOR GUIDE RAIL SUPPORT COLUMN STEEL BASE PLATE: COL. WIDTH x 1/2" THICK x COL. DEPTH + 6" W/ 2-3/8"Ø SCREW ANCHORS 1/4 TYP 2" MIN SF521-D1 ELEV DETAIL NO SCALE SF531 D1 TYPICAL DETAIL AT ELEVATOR SEPARATOR STEEL BEAM
