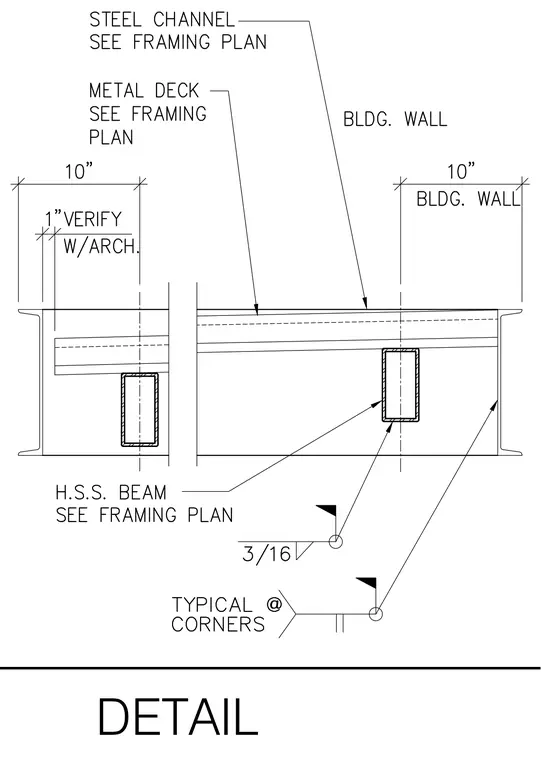

A hollow structural section beam frames into a steel channel at a building wall, positioned ten inches from the interior face and supported by a three-sixteenths inch fillet weld. A metal deck bears upon the steel channel as sized per the framing plan, maintaining a one inch offset to be verified with the architect. Typical welded corner connections tie the structural members together at the building wall junction.
