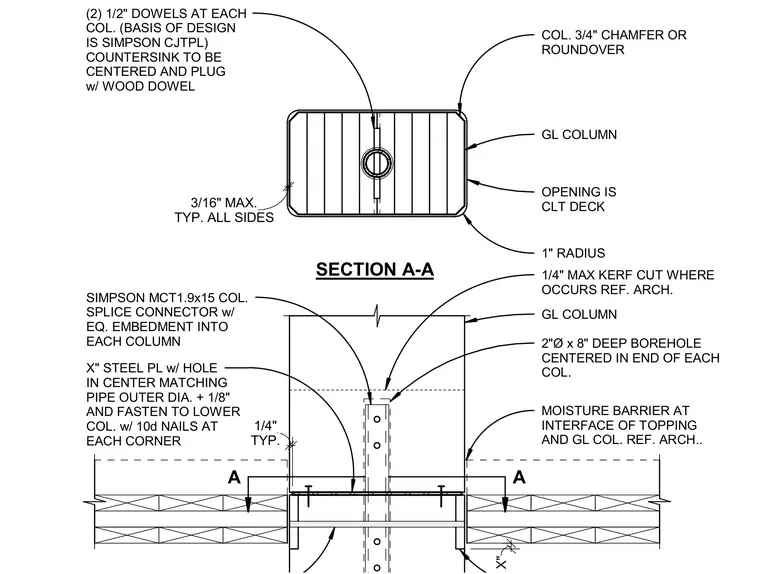

A glulam column splice and connection passes through a cross-laminated timber deck. The connection features a Simpson MCT1.9x15 column splice connector with equal embedment into each column, alongside a steel plate with a center hole matching the pipe outer diameter plus one-eighth inch fastened to the lower column with ten-penny nails at each corner. The glulam column end includes an eight-inch deep borehole centered in the end of each column, with two half-inch dowels at each column based on a Simpson CJTPL design and countersunk to be centered and plugged with a wood dowel. A quarter-inch moisture barrier is installed at the interface of the topping and glulam column per architectural drawings. The glulam column features a three-quarter-inch chamfer or roundover with a one-inch radius at corners, and a maximum quarter-inch kerf cut where required.
TYP. ALL SIDES 3/16" MAX. (2) 1/2" DOWELS AT EACH COL. (BASIS OF DESIGN IS SIMPSON CJTPL) COUNTERSINK TO BE CENTERED AND PLUG w/ WOOD DOWEL COL. 3/4" CHAMFER OR ROUNDOVER GL COLUMN OPENING IS CLT DECK 1" RADIUS 2"Ø x 8" DEEP BOREHOLE CENTERED IN END OF EACH COL. GL COLUMN X" SIMPSON MCT1.9x15 COL. SPLICE CONNECTOR w/ EQ. EMBEDMENT INTO EACH COLUMN X" STEEL PL w/ HOLE IN CENTER MATCHING PIPE OUTER DIA. + 1/8" AND FASTEN TO LOWER COL. w/ 10d NAILS AT EACH CORNER TYP. 1/4" MOISTURE BARRIER AT INTERFACE OF TOPPING AND GL COL. REF. ARCH.. SECTION A-A A A 1/4" MAX KERF CUT WHERE OCCURS REF. ARCH.
