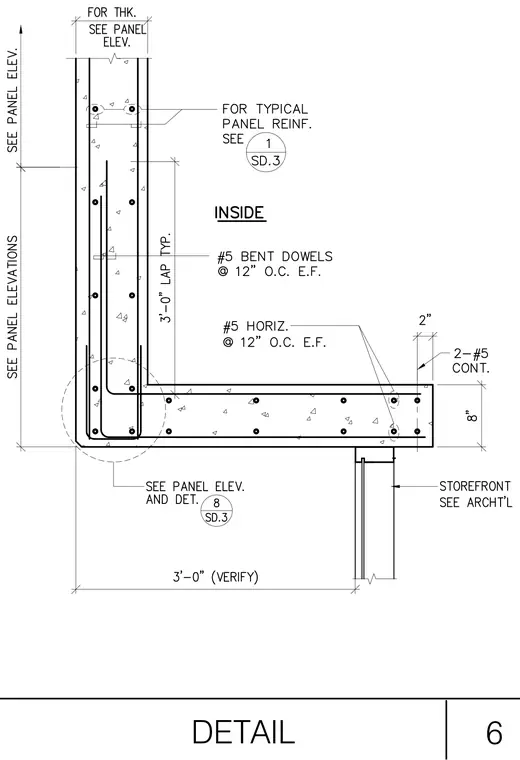

A precast concrete wall corner incorporates number five bent dowels spaced at twelve inches on center each face with a three-foot lap splice typical. The wall section is reinforced with continuous number five horizontal bars spaced at twelve inches on center within an eight-inch thick concrete panel. Storefront framing connects below the exterior concrete return as indicated on architectural drawings. Panel thickness and typical reinforcement details are referenced to separate elevations and details.
