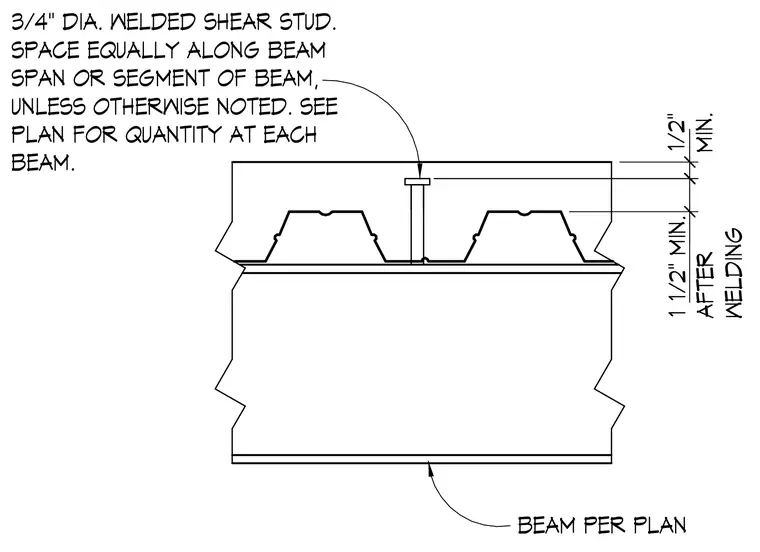

A three-quarter-inch diameter welded shear stud anchors into the top flange of a steel beam through the metal deck. The stud requires a minimum one-and-one-half-inch height after welding and a minimum one-half-inch cover above the top of the stud. Studs space equally along the beam span or segment unless noted otherwise, with exact quantities determined per plan.
1/2" MIN. 1 1/2" MIN. AFTER WELDING 3/4" DIA. WELDED SHEAR STUD. SPACE EQUALLY ALONG BEAM SPAN OR SEGMENT OF BEAM, UNLESS OTHERWISE NOTED. SEE PLAN FOR QUANTITY AT EACH BEAM. BEAM PER PLAN
