Wide-flange steel beams frame into a continuous wide-flange steel column using bolted shear tabs welded to the column flange. A half-inch thick cap plate sits atop the column with a one-inch maximum clearance. Shear tabs are connected with bolts sized per the typical beam connection schedule and welded with three-sixteenth inch welds on near side and far side three sides. Clearances include one and a half inch typical dimensions from the column centerline and flange face.

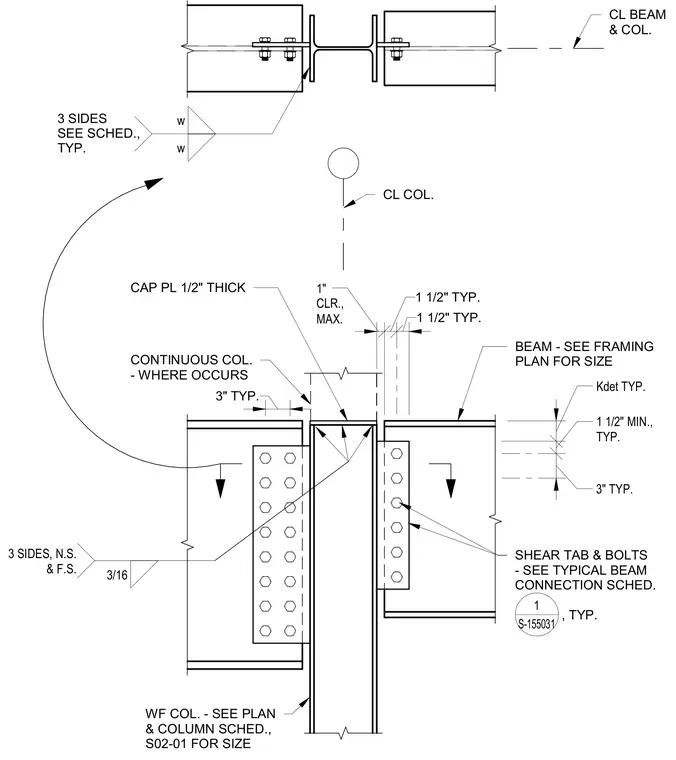

3/16 3 SIDES, N.S. & F.S. CONTINUOUS COL. - WHERE OCCURS CL COL. SHEAR TAB & BOLTS - SEE TYPICAL BEAM CONNECTION SCHED. , TYP. 1 1/2" TYP. 1 1/2" TYP. CAP PL 1/2" THICK 1" CLR., MAX. Kdet TYP. 1 1/2" MIN., TYP. 3" TYP. BEAM - SEE FRAMING PLAN FOR SIZE 3" TYP. 1 S-155031 CL BEAM & COL. w w 3 SIDES SEE SCHED., TYP. WF COL. - SEE PLAN & COLUMN SCHED., S02-01 FOR SIZE
