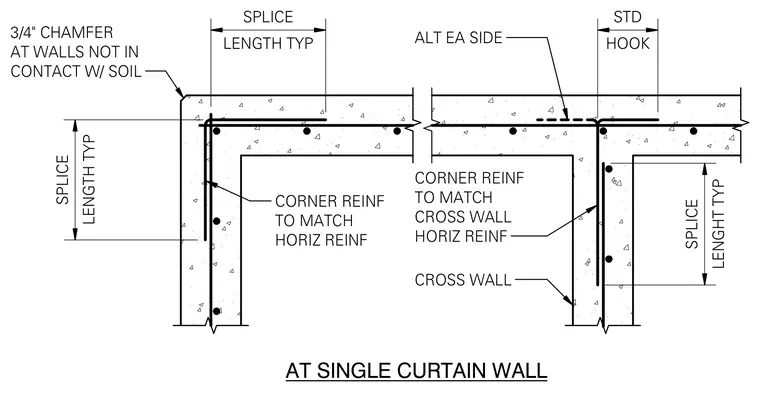

Concrete wall corner and T-intersection details showing horizontal rebar placement, lap splices, and standard hooks. Corner reinforcement matches the horizontal reinforcing, with alternating bars placed on each side. A standard hook is provided at the intersecting cross wall with a typical splice length. Exterior corners at walls not in contact with soil feature a three-quarter-inch chamfer.
AT SINGLE CURTAIN WALL CORNER REINF TO MATCH HORIZ REINF CROSS WALL CORNER REINF TO MATCH CROSS WALL HORIZ REINF 3/4" CHAMFER AT WALLS NOT IN CONTACT W/ SOIL ALT EA SIDE LENGTH TYP SPLICE LENGHT TYP SPLICE HOOK STD LENGTH TYP SPLICE
