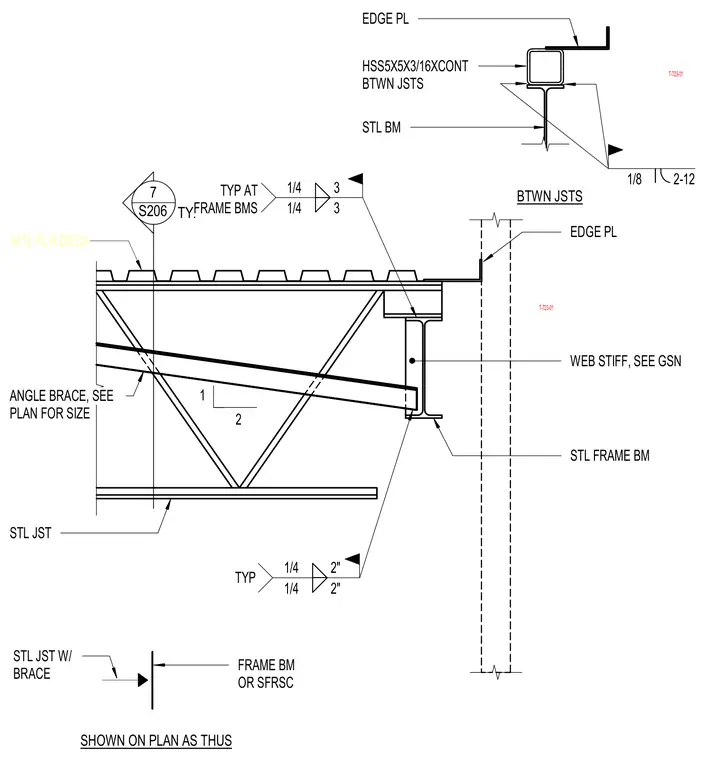

A continuous hollow structural section member measuring HSS5x5x3/16 is positioned between roof joists above a steel beam. An edge plate runs parallel to the framing members, supported by the HSS section. A web stiffener is installed on the structural steel frame beam as specified in the general structural notes. A steel joist with an angle brace runs parallel to the roof assembly, carrying metal floor deck. Fillet welds connect the assembly elements, including quarter-inch welds sized per the typical details.
WEB STIFF, SEE GSN STL FRAME BM ANGLE BRACE, SEE PLAN FOR SIZE STL JST BTWN JSTS HSS5X5X3/16XCONT BTWN JSTS 1 2 7 S206 TYP MTL FLR DECK 1/4 1/4 2" 2" TYP 1/4 1/4 3 3 1/8 2-12 T-723-01 EDGE PL TYP AT FRAME BMS T-723-01 STL BM EDGE PL SHOWN ON PLAN AS THUS FRAME BM OR SFRSC STL JST W/ BRACE
