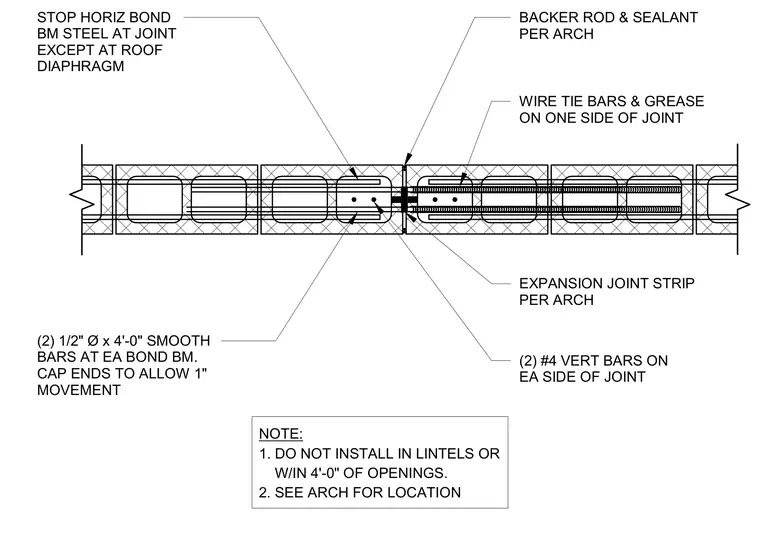

Horizontal bond beam steel is terminated at the joint except at the roof diaphragm. Two 1/2-inch diameter by 4-foot smooth bars are placed at each bond beam with capped ends to allow 1-inch of movement. Wire tie bars receive grease on one side of the joint alongside an expansion joint strip. Backer rod and sealant are installed per architectural specifications, backed by two number 4 vertical reinforcing bars on each side of the joint.
STOP HORIZ BOND BM STEEL AT JOINT EXCEPT AT ROOF DIAPHRAGM (2) 1/2" Ø x 4'-0" SMOOTH BARS AT EA BOND BM. CAP ENDS TO ALLOW 1" MOVEMENT BACKER ROD & SEALANT PER ARCH WIRE TIE BARS & GREASE ON ONE SIDE OF JOINT EXPANSION JOINT STRIP PER ARCH (2) #4 VERT BARS ON EA SIDE OF JOINT NOTE: 1. DO NOT INSTALL IN LINTELS OR W/IN 4'-0" OF OPENINGS. 2. SEE ARCH FOR LOCATION
