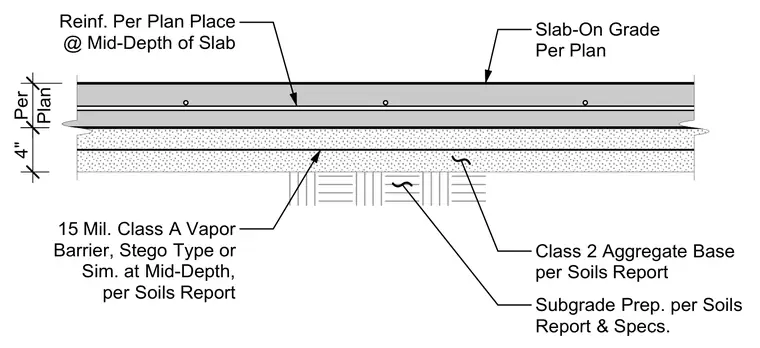

The assembly is founded on subgrade prepared per the soils report and specifications, overlaid by a four-inch thick class two aggregate base. A fifteen-mil class A vapor barrier, such as Stego type or similar, is installed at mid-depth per the soils report. The concrete slab-on-grade is placed above with reinforcement positioned at mid-depth of the slab per the structural plans.
Subgrade Prep. per Soils Report & Specs. Slab-On Grade Per Plan Reinf. Per Plan Place @ Mid-Depth of Slab Class 2 Aggregate Base per Soils Report 15 Mil. Class A Vapor Barrier, Stego Type or Sim. at Mid-Depth, per Soils Report Per Plan 4"
