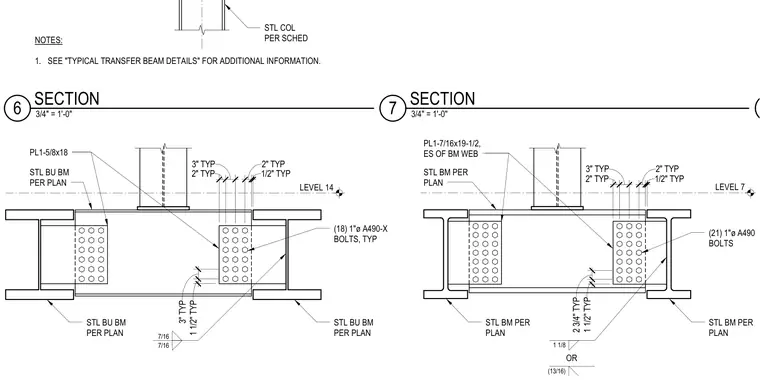

Two structural steel transfer beam sections at levels 7 and 14 detail heavy bolted web connections. Each assembly features steel built-up or standard beams connecting via plates welded or bolted to the webs. The level 14 detail incorporates an eighteen-bolt group of one-inch diameter A490-X high-strength bolts using a one-and-five-eighths-inch thick plate. The level 7 detail utilizes a twenty-one-bolt group of one-inch diameter A490 high-strength bolts with a one-and-seven-sixteenths-inch thick plate on each side of the beam web. Steel columns extend above the transfer beams per structural schedules.
2" TYP 1/2" TYP 2" TYP 3" TYP 1 1/2" TYP 2 3/4" TYP (21) 1"ø A490 BOLTS STL BM PER PLAN 1 1/8 PL1-7/16x19-1/2, ES OF BM WEB STL BM PER PLAN STL BM PER PLAN (13/16) OR LEVEL 7 2" TYP 1/2" TYP 2" TYP 3" TYP 1 1/2" TYP 3" TYP (18) 1"ø A490-X BOLTS, TYP STL BU BM PER PLAN 7/16 7/16 PL1-5/8x18 STL BU BM PER PLAN STL BU BM PER PLAN LEVEL 14 STL COL PER SCHED NOTES: 1. SEE "TYPICAL TRANSFER BEAM DETAILS" FOR ADDITIONAL INFORMATION. 3/4" = 1'-0" 7 SECTION 3/4" = 1'-0" 6 SECTION
