Structural · S-E5EH8

Roof Beam and Horizontal Truss to Column Connection

Elements

Connections

About this detail

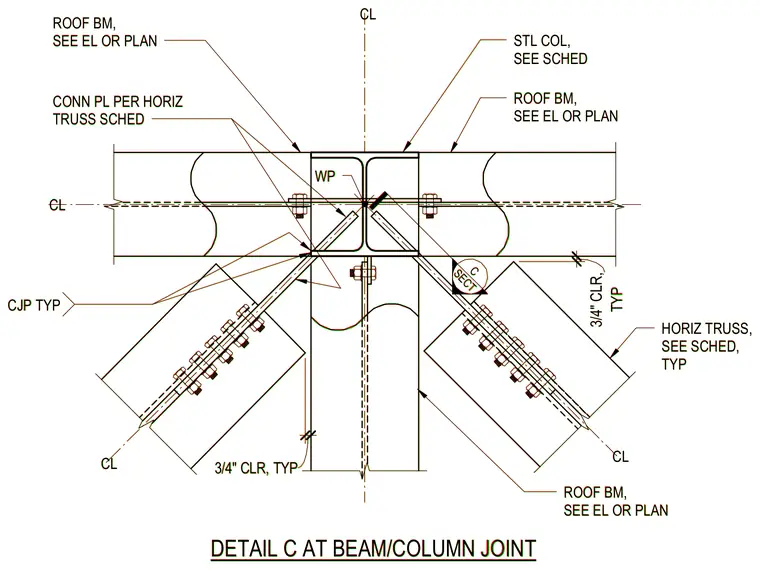

Roof beams and horizontal trusses frame into a structural steel column with connection plates sized per the horizontal truss schedule. Horizontal truss members connect using gusset plates welded with complete joint penetration welds typically. A three-quarter inch clearance is maintained typically at member intersections. Centerlines align at the work point of the joint.
