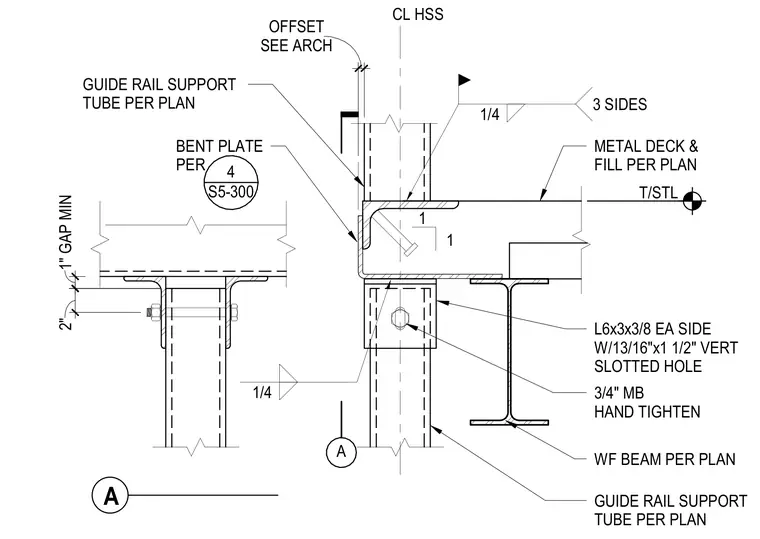

An elevator guide rail support tube is anchored to a wide flange structural steel beam and metal deck floor assembly. Connection angles measuring L6x3x3/8 are placed on each side of the support tube with thirteen-sixteenths by one-and-a-half-inch vertical slotted holes and secured with three-quarter-inch machine bolts hand tightened to allow movement. A bent plate sized per plan interfaces with the assembly, maintaining a one-inch minimum gap. A quarter-inch fillet weld secures the connection on three sides.
A 4 S5-300 2" 1" GAP MIN A T/STL WF BEAM PER PLAN L6x3x3/8 EA SIDE W/13/16"x1 1/2" VERT SLOTTED HOLE 3/4" MB HAND TIGHTEN GUIDE RAIL SUPPORT TUBE PER PLAN SEE ARCH OFFSET 1/4 BENT PLATE PER 1/4 3 SIDES METAL DECK & FILL PER PLAN GUIDE RAIL SUPPORT TUBE PER PLAN 1 1 CL HSS
