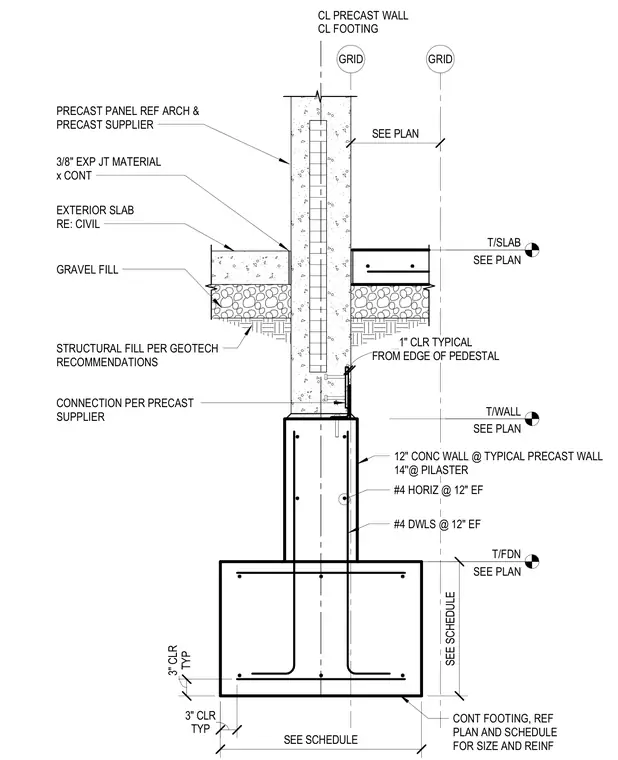

A precast concrete wall bears on a twelve-inch concrete wall with fourteen-inch pilasters, reinforced with number four horizontal bars at twelve inches each face and number four dowels at twelve inches each face. The wall sits atop a continuous concrete footing sized per plan and schedule, maintaining three inches of concrete cover. An exterior slab on grade interfaces with the wall via a continuous three-eighths-inch expansion joint material over gravel fill and structural fill. Connection hardware is provided per the precast supplier, with one-inch typical clearance from the edge of the pedestal.
GRID GRID EXTERIOR SLAB RE: CIVIL T/FDN SEE PLAN GRAVEL FILL STRUCTURAL FILL PER GEOTECH RECOMMENDATIONS CONT FOOTING, REF PLAN AND SCHEDULE FOR SIZE AND REINF 3/8" EXP JT MATERIAL x CONT TYP 3" CLR TYP 3" CLR PRECAST PANEL REF ARCH & PRECAST SUPPLIER T/SLAB SEE PLAN SEE PLAN CONNECTION PER PRECAST SUPPLIER T/WALL SEE PLAN CL PRECAST WALL CL FOOTING 12" CONC WALL @ TYPICAL PRECAST WALL 14''@ PILASTER #4 HORIZ @ 12" EF #4 DWLS @ 12" EF SEE SCHEDULE SEE SCHEDULE FROM EDGE OF PEDESTAL 1" CLR TYPICAL
