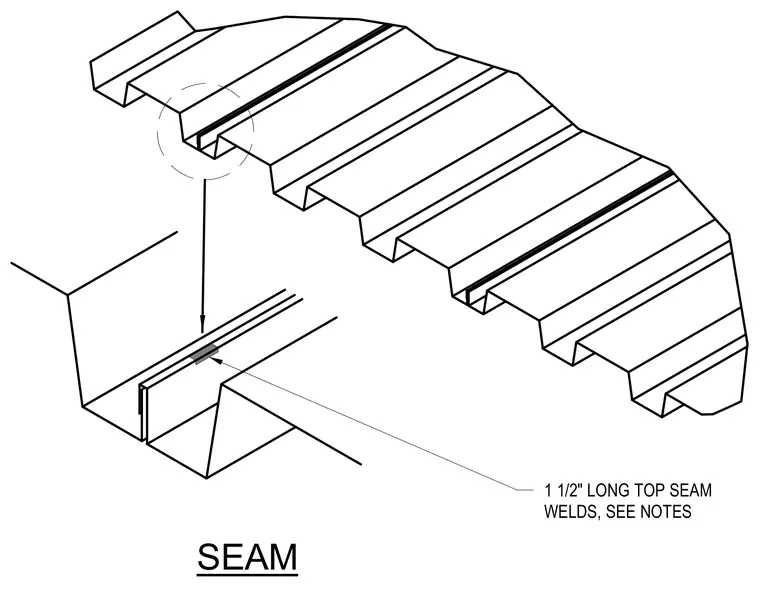

Adjacent metal deck panels are joined along their longitudinal side laps with one and one-half inch long top seam welds placed according to project notes. The lapped ribs interlock to form a continuous structural floor or roof deck. The welded seam transfers shear forces between adjacent profiles.
