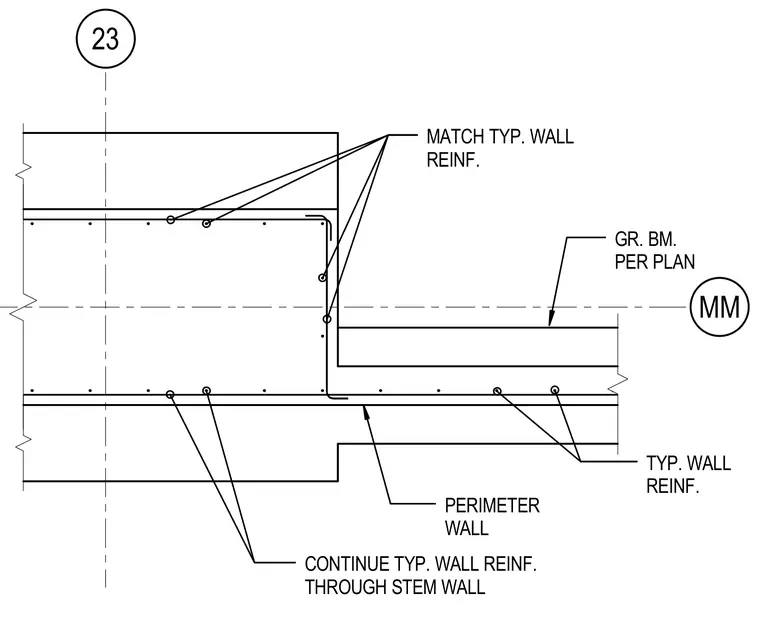

Connection between a perimeter wall and a grade beam, with continuous typical wall reinforcement extending through the stem wall. The grade beam is sized per plan and integrates with the perimeter wall concrete assembly.
MM 23 PERIMETER WALL GR. BM. PER PLAN CONTINUE TYP. WALL REINF. THROUGH STEM WALL TYP. WALL REINF. MATCH TYP. WALL REINF.
