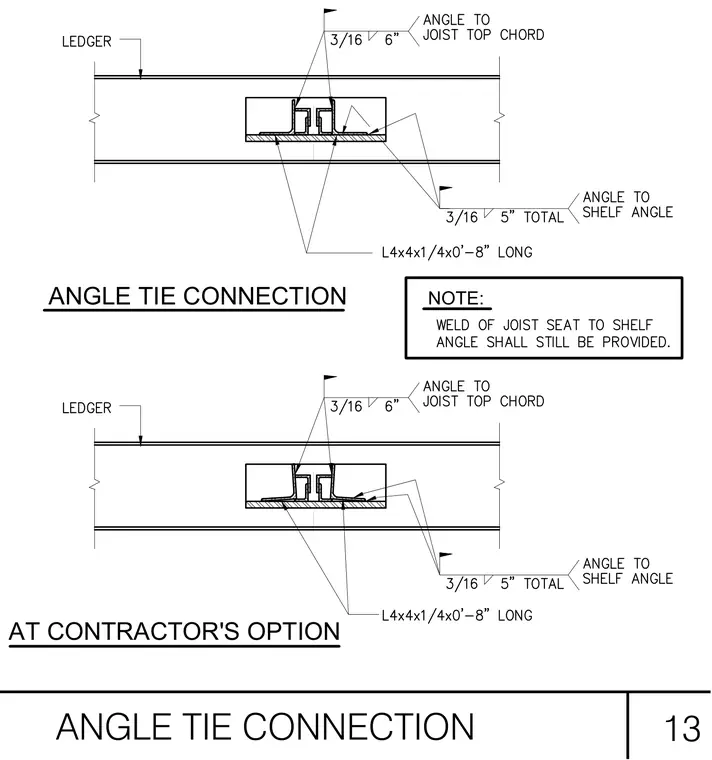

An angle tie connection joins a structural steel ledger and joist top chord to a shelf angle using an L4x4x1/4 angle eight inches long. The angle connects to the joist top chord with a three-sixteenths inch fillet weld six inches long, and to the shelf angle with a three-sixteenths inch fillet weld five inches total. A drawing note indicates that the weld of the joist seat to the shelf angle shall still be provided, and that this angle tie connection is at the contractor's option.
