A steel beam per plan bears onto a column cap plate sized to match the beam or column width plus one-half inch with a thickness matching the beam flange and a three-quarter inch minimum. Three-eighths-inch stiffener plates are welded to each side of the column web with three-sixteenths-inch fillet welds on three sides. A three-eighths-inch by nine-inch splice plate on each side centers on the splice and connects the framing members using four three-quarter-inch-diameter A307 bolts at standard gauge, totaling eight bolts. Five-sixteenths-inch fillet welds secure the column cap plate and splice connections on three sides typically.

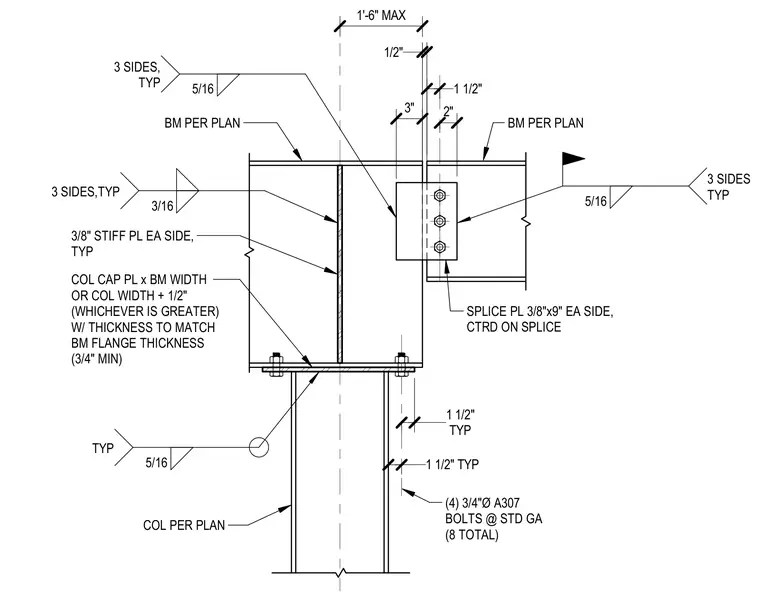

BM PER PLAN 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH + 1/2" (WHICHEVER IS GREATER) W/ THICKNESS TO MATCH BM FLANGE THICKNESS (3/4" MIN) TYP 1 1/2" 1 1/2" TYP 1'-6" MAX 3" SPLICE PL 3/8"x9" EA SIDE, CTRD ON SPLICE (4) 3/4"Ø A307 BOLTS @ STD GA (8 TOTAL) COL PER PLAN 5/16 TYP 3/16 3 SIDES,TYP 5/16 3 SIDES, TYP 1/2" BM PER PLAN 1 1/2" 2" 5/16 3 SIDES TYP
