A hollow structural section support connects to an eight-inch cold-formed steel stud wall at a slab edge dimensioned one foot five and one-half inches from grid. Vertical hollow structural sections run for the full height of the angled pier, joined with complete joint penetration welds typically. Horizontal hollow structural section supports are fastened using powder-actuated fasteners spaced at six inches on center typically, with five-sixteenths inch fillet welds applied typically at the base connections.

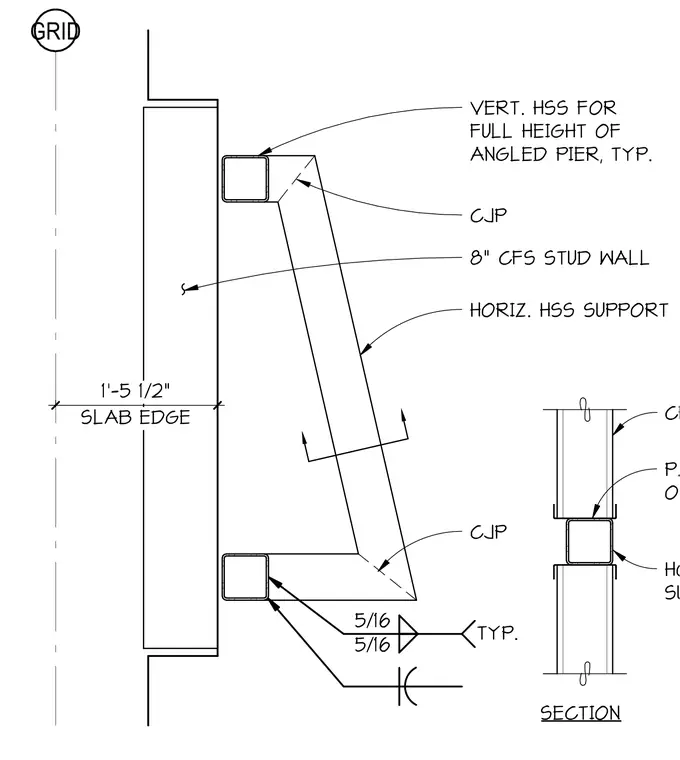

GRID SLAB EDGE 1'-5 1/2" 5/16 5/16 TYP. CJP HORIZ. HSS SUPPORT CJP VERT. HSS FOR FULL HEIGHT OF ANGLED PIER, TYP. SECTION HORIZ. HSS SUPPORT P.A.F. @ 6" O.C., TYP. CFS STUD 8" CFS STUD WALL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
