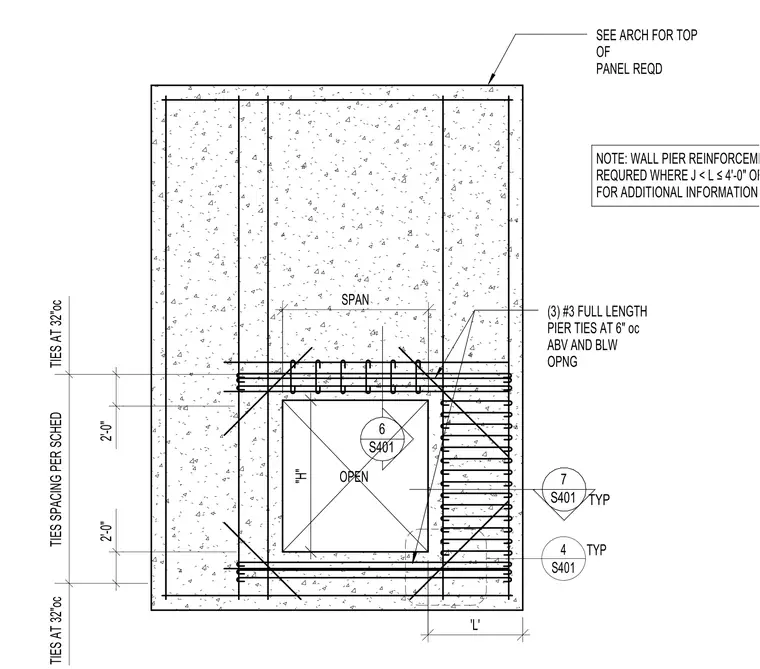

This concrete wall pier reinforcement detail specifies vertical and horizontal rebar placement around wall openings. Three number three full-length pier ties are placed at six inches on center both above and below the opening. Standard ties are spaced at thirty-two inches on center with intermediate spacing per schedule. Additional reinforcement is required where dimension J is less than or equal to L and L is less than or equal to four feet, or where L is less than or equal to H divided by two.
6 S401 7 S401 TYP SPAN 'L' "H" SEE ARCH FOR TOP OF PANEL REQD 2'-0" 2'-0" TIES AT 32"oc TIES AT 32"oc TIES SPACING PER SCHED (3) #3 FULL LENGTH PIER TIES AT 6" oc ABV AND BLW OPNG NOTE: WALL PIER REINFORCEMENT REQURED WHERE J < L ≤ 4'-0" OR L ≤ H/2. FOR ADDITIONAL INFORMATION SEE OPEN S401 4 TYP
