Structural · S-E3YC5

Existing Metal Stud Wall and Steel Column Details

Materials

Concrete Reinforced Concrete Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)EIFS / Plaster / Stucco

Elements

Columns Walls Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage

About this detail

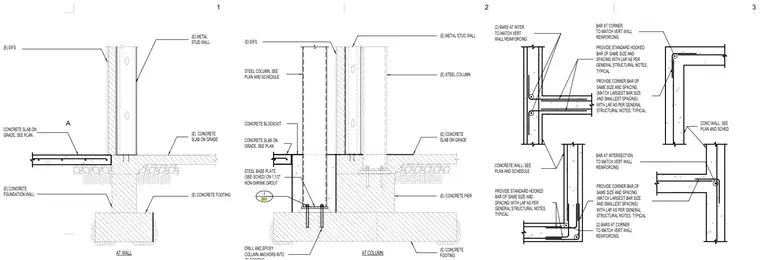

This composite detail shows connections and intersections at an existing metal stud wall and steel column condition. The metal stud wall bears adjacent to an existing concrete foundation wall and slab on grade with exterior EIFS. The steel column bears on a steel base plate set over a one-and-a-half-inch non-shrink grout pad, anchored with drilled and epoxy-set column anchors into the existing concrete pier and footing. Additional details illustrate concrete wall intersections and corners with hooked reinforcing bars matching vertical wall reinforcing size and spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
