Structural · S-E3WDF

Metal Deck Attachment and Channel Framing at Steel Beam

Materials

Steel

Elements

Decks

Connections

Welded Connection Deck Attachment

About this detail

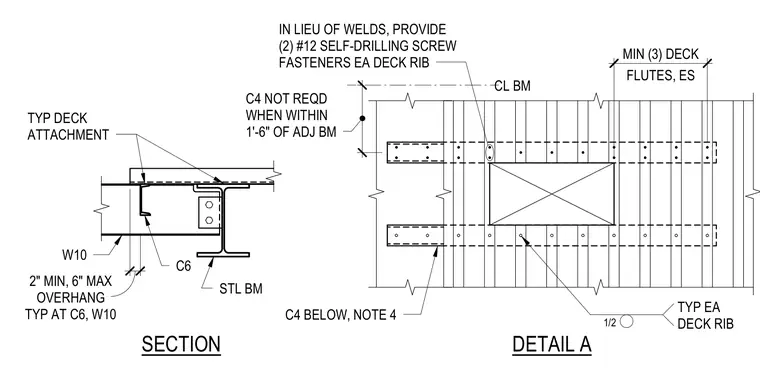

Metal deck bears over a W10 steel beam with a channel framing member below, maintaining a two-inch minimum and six-inch maximum overhang. In lieu of welds, two number twelve self-drilling screw fasteners are provided at each deck rib. A minimum of three deck flutes are required at each end span. The channel member is omitted when located within one foot six inches of an adjacent beam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
