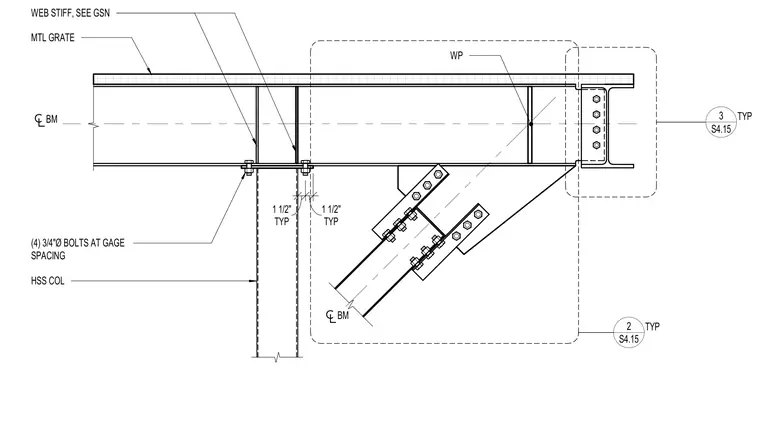

A metal grate covers the top flange of the cantilevered steel beam framing. A hollow structural section column supports the assembly with web stiffeners and a bolted connection utilizing four three-quarter inch diameter bolts at typical gauge spacing. An angled brace connects back to the structural framework with bolted gusset plates at the work point intersection.
MTL GRATE WEB STIFF, SEE GSN HSS COL S4.15 3 TYP TYP 1 1/2" TYP 1 1/2" (4) 3/4"Ø BOLTS AT GAGE SPACING BM BM WP S4.15 2 TYP
