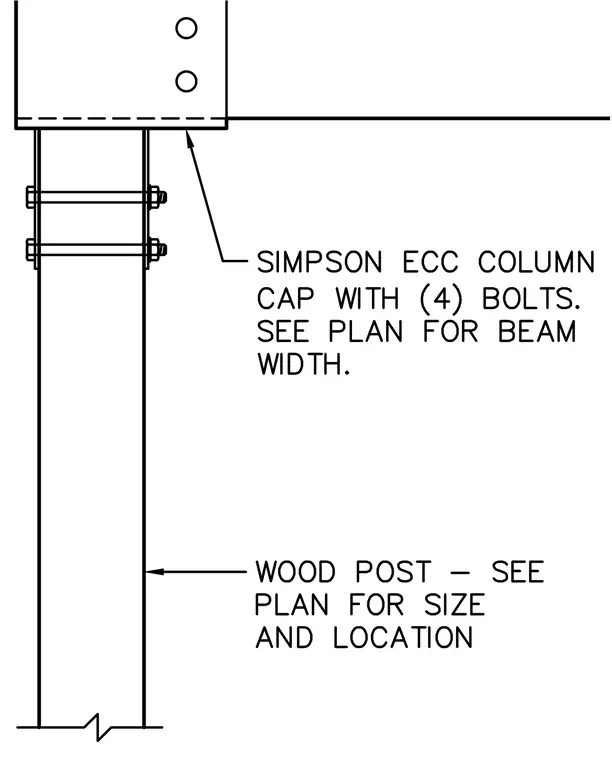

A vertical wood post connects to an overhead beam using a Simpson eccentric column cap secured with four bolts. Two through-bolts with nuts and washers fasten the upper portion of the wood post to the column cap sides. The size and location of the wood post and the width of the beam are sized per the structural plan.
