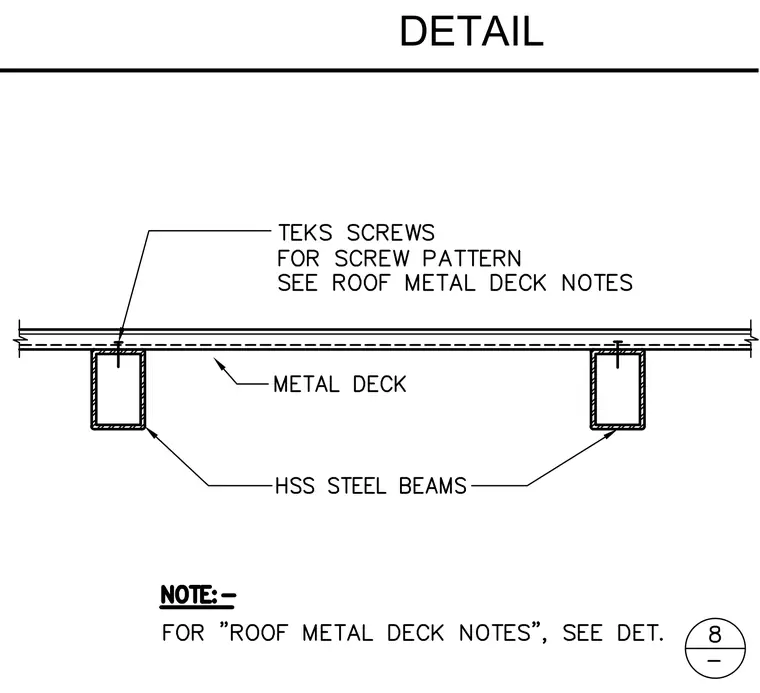

Roof metal deck bears continuously across hollow structural section steel beams and is fastened using TEKS screws. The specific screw pattern and fastening schedule are referenced to the roof metal deck notes. Additional guidance for roof metal deck notes is provided in detail 8.
