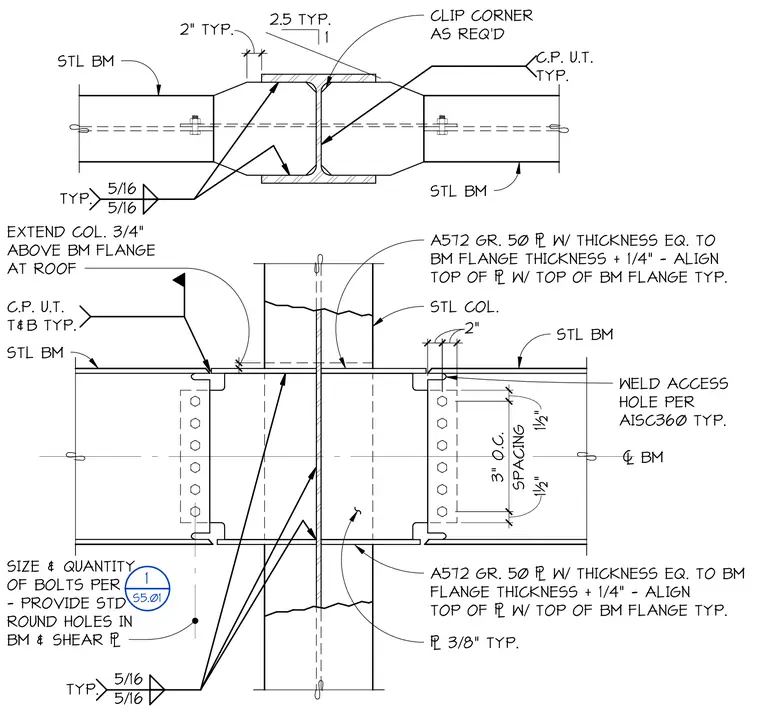

A structural steel moment connection joins steel beams to a steel column using ASTM A572 Grade 50 plates. Flange plates are sized with a thickness equal to the beam flange thickness plus one quarter inch, aligned flush with the top of the beam flange typically. The connection incorporates weld access holes detailed per AISC 360 standards at the beam webs, with complete joint penetration welds at the top and bottom flanges. Shear tabs provide web connection using standard round holes and bolts sized per schedule, spaced at three inches on center with one and a half inch edge distances. Additional three-eighths inch plates and clip corners are provided as required, with the column extending three-quarters of an inch above the beam flange at the roof.
A572 GR. 50 # W/ THICKNESS EQ. TO BM FLANGE THICKNESS + 1/4" - ALIGN TOP OF # W/ TOP OF BM FLANGE TYP. STL COL. A572 GR. 50 # W/ THICKNESS EQ. TO BM FLANGE THICKNESS + 1/4" - ALIGN TOP OF # W/ TOP OF BM FLANGE TYP. WELD ACCESS HOLE PER AISC360 TYP. C.P. U.T. T&B TYP. STL BM STL BM EXTEND COL. 3/4" ABOVE BM FLANGE AT ROOF 5/16 5/16 TYP. SIZE & QUANTITY OF BOLTS PER - PROVIDE STD ROUND HOLES IN BM & SHEAR # STL BM CLIP CORNER AS REQ'D 2" TYP. C.P. U.T. TYP. 2.5 TYP. 1 STL BM 5/16 5/16 TYP. 1½" SPACING 3" O.C. 1½" 2" 2" . BM # 3/8" TYP. 1 S5.01
