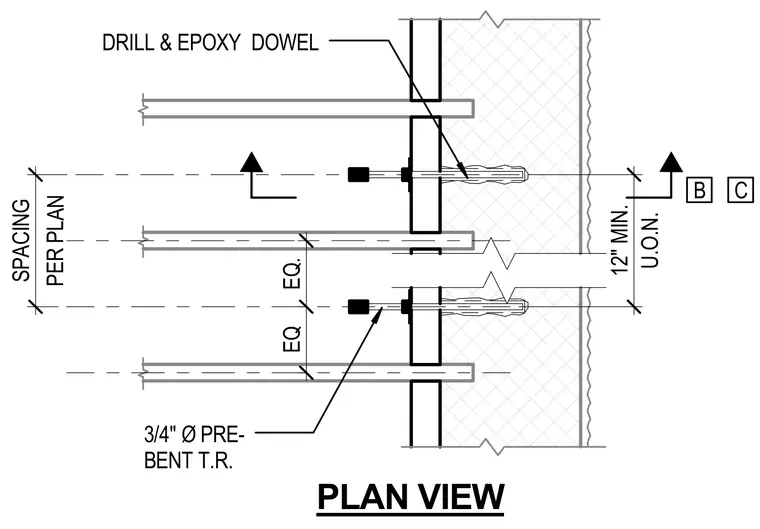

A three-quarter inch diameter pre-bent threaded rod is anchored into existing concrete using a drilled hole and epoxy dowel. Horizontal reinforcing bars are spaced evenly per plan with a minimum twelve-inch dimension unless otherwise noted. The assembly provides structural anchorage and tie-in for concrete construction.
B DRILL & EPOXY DOWEL 3/4" Ø PRE- BENT T.R. EQ. EQ PLAN VIEW C U.O.N. 12" MIN. PER PLAN SPACING
