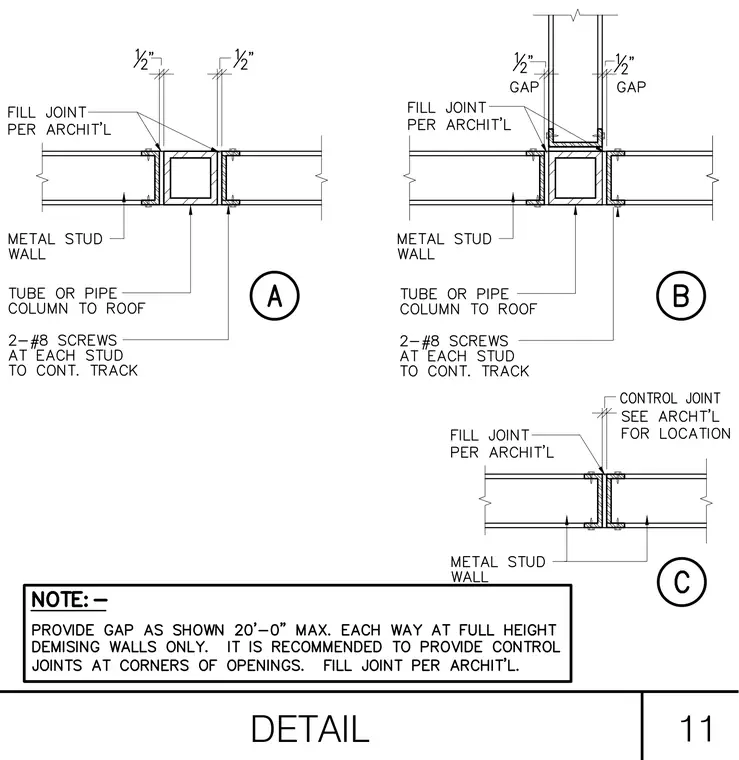

Metal stud walls abut hollow structural section tube or pipe columns and adjacent wall segments with half-inch gaps detailed for control joints. Each metal stud connects to continuous tracks using two number-eight screws. Joints are filled per architectural specifications. A note mandates gaps at a maximum of twenty feet each way at full height demising walls only, with control joints recommended at opening corners.
