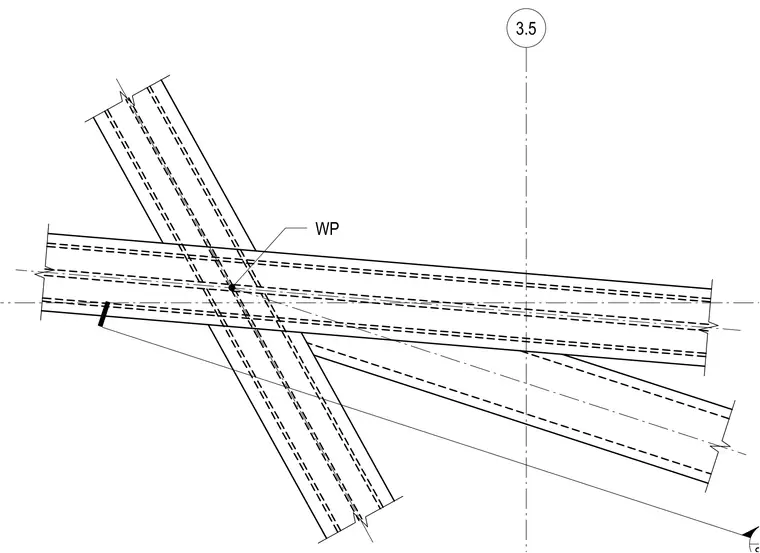

Intersecting structural members meet at a designated work point with centerlines aligned for load transfer. A reference coordinate grid line intersects nearby, establishing spatial orientation for the assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
