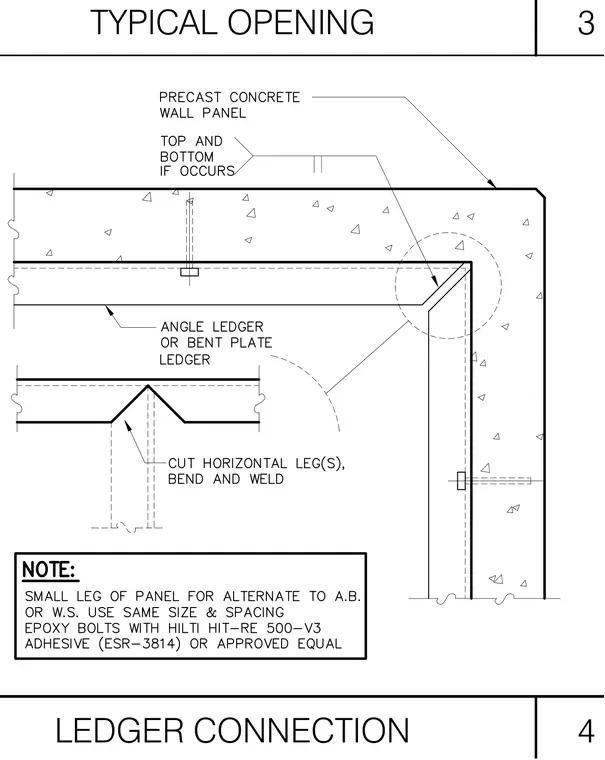

An angle ledger or bent plate ledger frames an opening within a precast concrete wall panel. Epoxy bolts anchored with Hilti HIT-RE 500-V3 adhesive or approved equal secure the assembly. Horizontal legs are cut, bent, and welded where indicated, with top and bottom conditions detailed at panel corners. The small leg of the panel accommodates alternate anchor bolts or welded studs using the same size and spacing.
