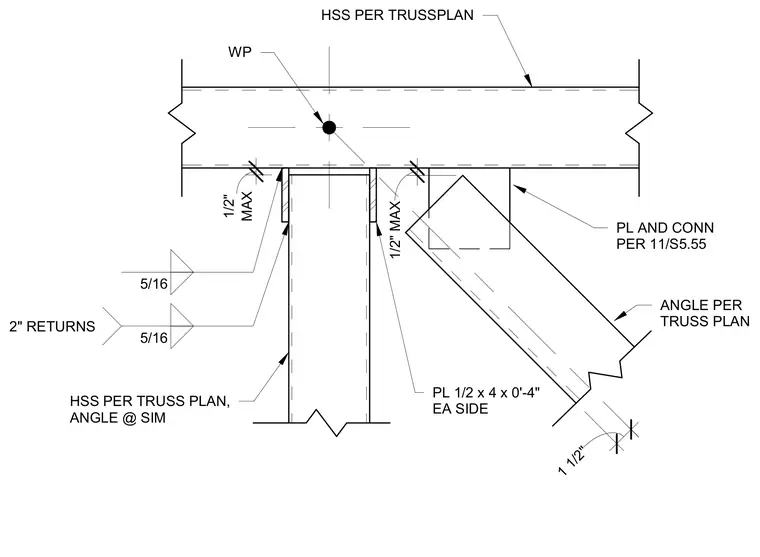

A hollow structural section truss chord connects to a vertical HSS member and a diagonal angle strut at a designated working point. Half-inch thick plates measuring 4 by 4 inches are welded to each side of the vertical HSS member. Five-sixteenth-inch fillet welds secure the connection with two-inch returns. A diagonal angle per the truss plan is tied in using a plate and connection detail specified on sheet S5.55. Maximum clearances of one-half inch are maintained between the connected structural elements.
HSS PER TRUSSPLAN PL AND CONN PER 11/S5.55 ANGLE PER TRUSS PLAN MAX 1/2" HSS PER TRUSS PLAN, ANGLE @ SIM PL 1/2 x 4 x 0'-4" EA SIDE 5/16 5/16 2" RETURNS WP 1 1/2" 1/2" MAX
