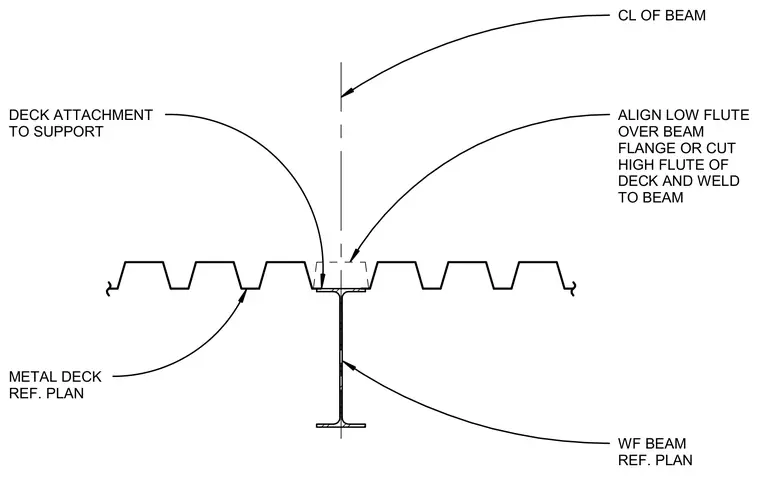

Metal deck bears directly across the top flange of a wide-flange steel beam. The low flute aligns over the beam flange, or the high flute is cut to allow the deck to bear and weld to the supporting beam. The centerline of the beam aligns with the center of the deck flute attachment zone.
METAL DECK REF. PLAN WF BEAM REF. PLAN ALIGN LOW FLUTE OVER BEAM FLANGE OR CUT HIGH FLUTE OF DECK AND WELD TO BEAM CL OF BEAM DECK ATTACHMENT TO SUPPORT
