A wide-flange column and buckling-restrained brace base plate connection bears on a concrete foundation. Two rows of ASTM F1554 Grade 105 headed anchor bolts secure the base plate, featuring a minimum threaded bolt projection of 6 inches and PVC sleeves sized to a maximum of 1/2 inch oversize for the anchor rods. An embedded plate is cast into the foundation with non-shrink grout filling the annular space at the shear anchors. The gusset plate and brace connect via a shear plate with oversize holes and weld washers, utilizing complete joint penetration demand critical welds. Notes require protecting the steel from free water where concrete pours against the gusset and column.

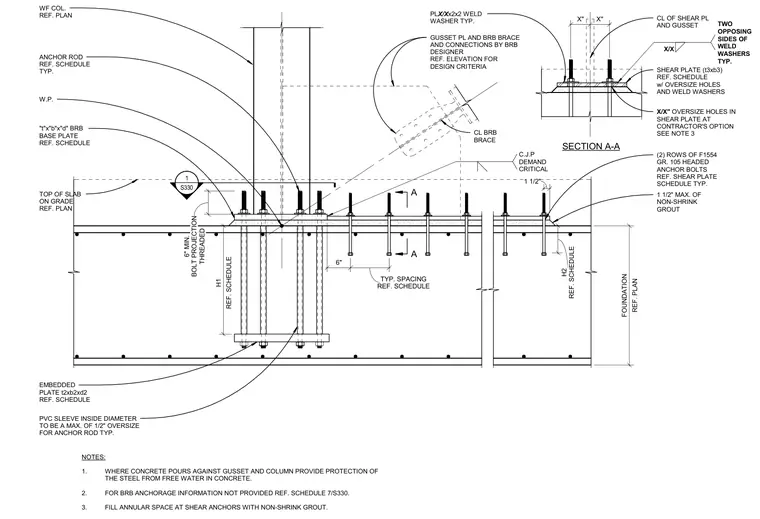

WF COL. REF. PLAN GUSSET PL AND BRB BRACE AND CONNECTIONS BY BRB DESIGNER REF. ELEVATION FOR DESIGN CRITERIA (2) ROWS OF F1554 GR. 105 HEADED ANCHOR BOLTS REF. SHEAR PLATE SCHEDULE TYP. CL BRB BRACE SECTION A-A "t"x"b"x"d" BRB BASE PLATE REF. SCHEDULE A A NOTES: 1. WHERE CONCRETE POURS AGAINST GUSSET AND COLUMN PROVIDE PROTECTION OF THE STEEL FROM FREE WATER IN CONCRETE. 2. FOR BRB ANCHORAGE INFORMATION NOT PROVIDED REF. SCHEDULE 7/S330. 3. FILL ANNULAR SPACE AT SHEAR ANCHORS WITH NON-SHRINK GROUT. EMBEDDED PLATE t2xb2xd2 REF. SCHEDULE 1 1/2" C.J.P DEMAND CRITICAL 6" REF. SCHEDULE TYP. SPACING 1 1/2" MAX. OF NON-SHRINK GROUT REF. SCHEDULE H1 ANCHOR ROD REF. SCHEDULE TYP. W.P. 1 S330 _____ CL OF SHEAR PL AND GUSSET SHEAR PLATE (t3xb3) REF. SCHEDULE w/ OVERSIZE HOLES AND WELD WASHERS X/X TWO OPPOSING SIDES OF WELD WASHERS TYP. PL X/X x2x2 WELD WASHER TYP. TOP OF SLAB ON GRADE REF. PLAN X/X" OVERSIZE HOLES IN SHEAR PLATE AT CONTRACTOR'S OPTION SEE NOTE 3 REF. PLAN FOUNDATION PVC SLEEVE INSIDE DIAMETER TO BE A MAX. OF 1/2" OVERSIZE FOR ANCHOR ROD TYP. X" X" REF. SCHEDULE H2 THREADED 6" MIN. BOLT PROJECTION
