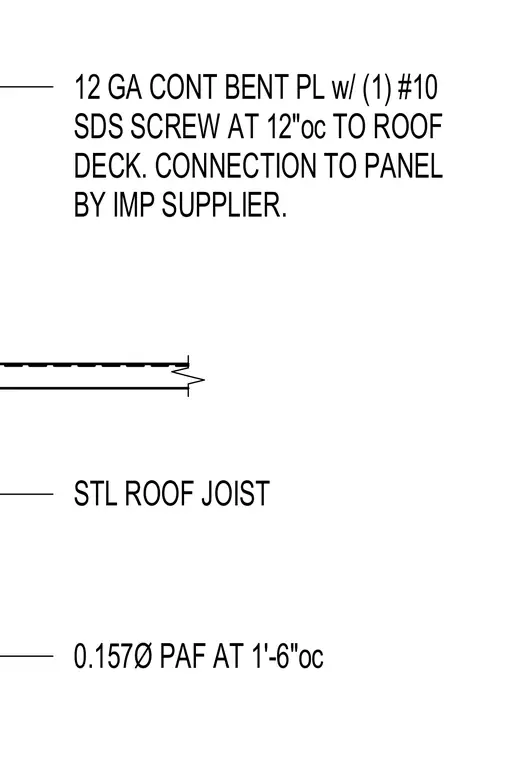

A steel roof joist connects to a panel utilizing a 0.157-inch diameter powder-actuated fastener spaced at 1'-6" on center. A 12-gauge continuous bent plate fastens to the roof deck with one number 10 self-drilling screw at 12" on center. The connection to the panel is provided by the insulated metal panel supplier.
0.157Ø PAF AT 1'-6"oc STL ROOF JOIST 12 GA CONT BENT PL w/ (1) #10 SDS SCREW AT 12"oc TO ROOF DECK. CONNECTION TO PANEL BY IMP SUPPLIER.
