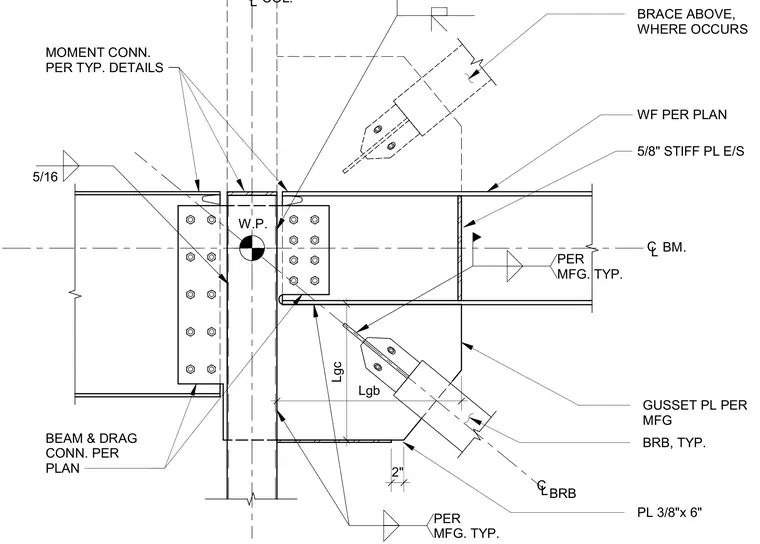

This structural connection features a buckling-restrained brace framing into a hollow structural section column via a gusset plate sized per the manufacturer. Wide-flange beams frame into the column with moment connections and shear tabs as specified per plan. Five-eighth-inch stiffener plates are welded to the beam web each side, and a three-eighth-inch by six-inch plate is welded near the brace intersection. A five-sixteenth-inch fillet weld secures the connection elements as detailed.
BRB W.P. BM. CL CL CL COL. PER MFG. TYP. MOMENT CONN. PER TYP. DETAILS BEAM & DRAG CONN. PER PLAN 5/8" STIFF PL E/S WF PER PLAN GUSSET PL PER MFG 5/16 BRB, TYP. Lgb Lgc PL 3/8"x 6" 2" PER MFG. TYP. BRACE ABOVE, WHERE OCCURS
