A concrete housekeeping pad sits atop a concrete fill over metal deck and a structural steel beam. The pad incorporates number four reinforcing bars at sixteen inches on center each way placed at mid-depth, maintaining a one-and-a-half-inch concrete cover. The cold joint between the pad and the structural fill is roughened to a quarter-inch amplitude. Three-eighths-inch diameter expansion bolts anchor the pad at twenty-four inches on center at every other low flute. Additional number four reinforcing bars measuring forty-eight inches are spaced at eighteen inches on center at the beam parallel to the deck.

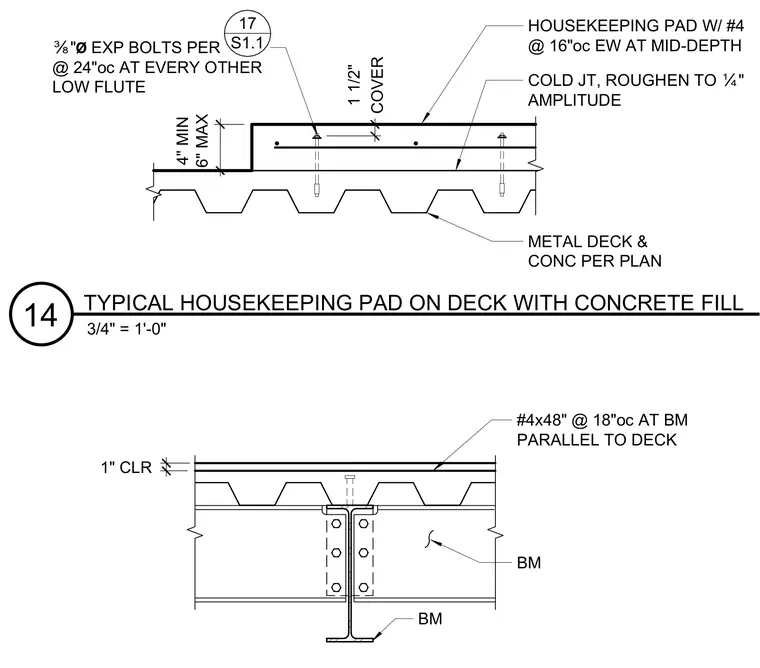

#4x48" @ 18"oc AT BM PARALLEL TO DECK BM BM 1" CLR 4" MIN 6" MAX Í" ø EXP BOLTS PER @ 24"oc AT EVERY OTHER LOW FLUTE HOUSEKEEPING PAD W/ #4 @ 16"oc EW AT MID-DEPTH COLD JT, ROUGHEN TO Ë" AMPLITUDE METAL DECK & CONC PER PLAN COVER 1 1/2" 17 S1.1 3/4" = 1'-0" 14 TYPICAL HOUSEKEEPING PAD ON DECK WITH CONCRETE FILL
