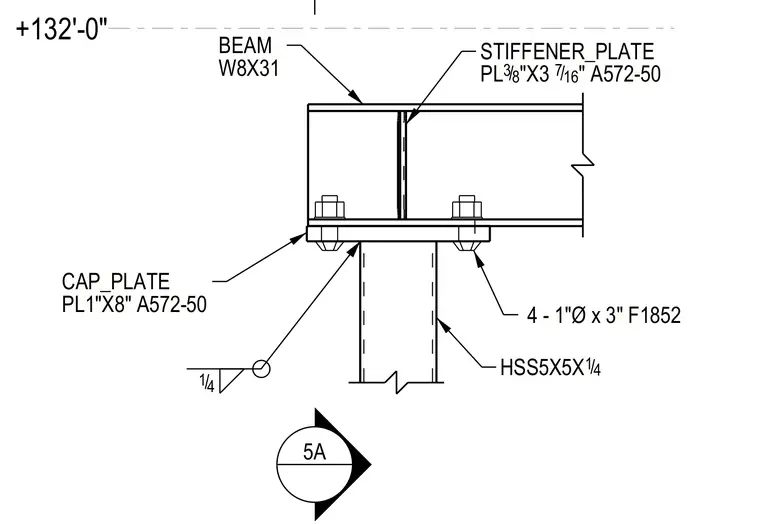

A W8X31 steel beam bears onto a 1-inch thick by 8-inch wide A572-50 cap plate welded to the top of an HSS 5x5x1/4 hollow structural section column with a quarter-inch fillet weld. Four 1-inch diameter by 3-inch long F1852 bolts secure the beam bottom flange to the cap plate. A 3/8-inch by 3-7/16-inch A572-50 stiffener plate is welded inside the beam web directly over the column support.
+132'-0" BEAM W8X31 CAP_PLATE PL1"X8" A572-50 4 - 1"Ø x 3" F1852 5A STIFFENER_PLATE PL 3 8 / "X3 7 16 / " A572-50 HSS5X5X 1 4 / 14 /
