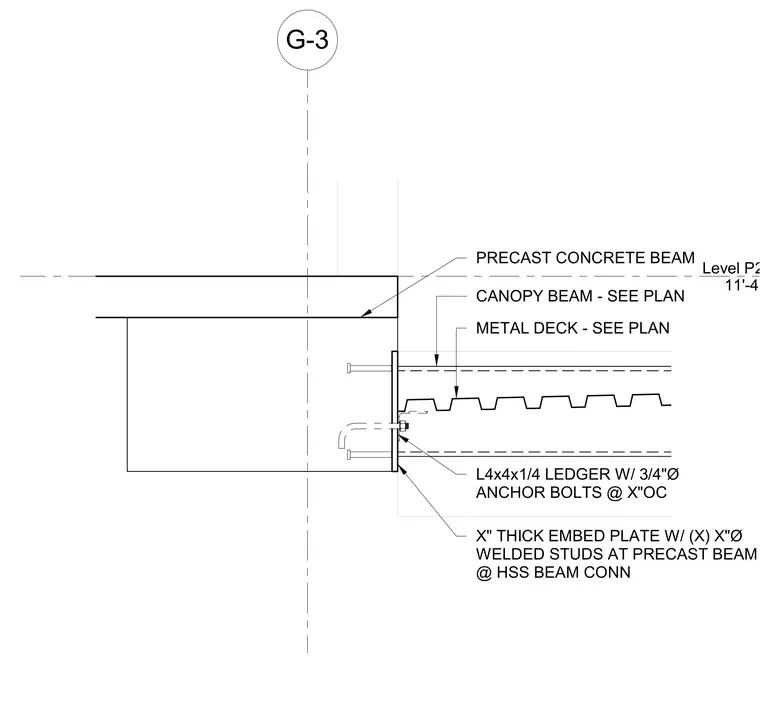

A canopy beam and metal deck are supported by a precast concrete beam at Level P2 elevation 11'-4". An embed plate of specified thickness with welded studs is cast into the precast concrete beam at the hollow structural section beam connection. An L4x4x1/4 angle ledger is bolted to the assembly using three-quarter-inch diameter anchor bolts spaced at regular intervals on center.
Level P2 11'-4" G-3 CANOPY BEAM - SEE PLAN PRECAST CONCRETE BEAM METAL DECK - SEE PLAN X" THICK EMBED PLATE W/ (X) X"Ø WELDED STUDS AT PRECAST BEAM @ HSS BEAM CONN L4x4x1/4 LEDGER W/ 3/4"Ø ANCHOR BOLTS @ X"OC
